Extruded Red Multipurpose Hose

Applications

A premium one-hose solution to most hose requirements — air, water and light oil duties. Industrial, workshops, agriculture and civil.

Technical description

  • Tube: Black NBR, high oil resistance
  • Reinforcement: High strength synthetic braid
  • Cover: Red NBR/PVC blend, non-conductive
  • Temperature Range: −20°C (−4°F) to +90°C (+194°F)

Data at 23°C / 50% RH. Specifications subject to manufacturer changes.

QTY

Price

Pricing Module ComingYou'll get pricing for this item in the quote you submit — for now, just add it to your cart.

Extruded Red Multipurpose Hose

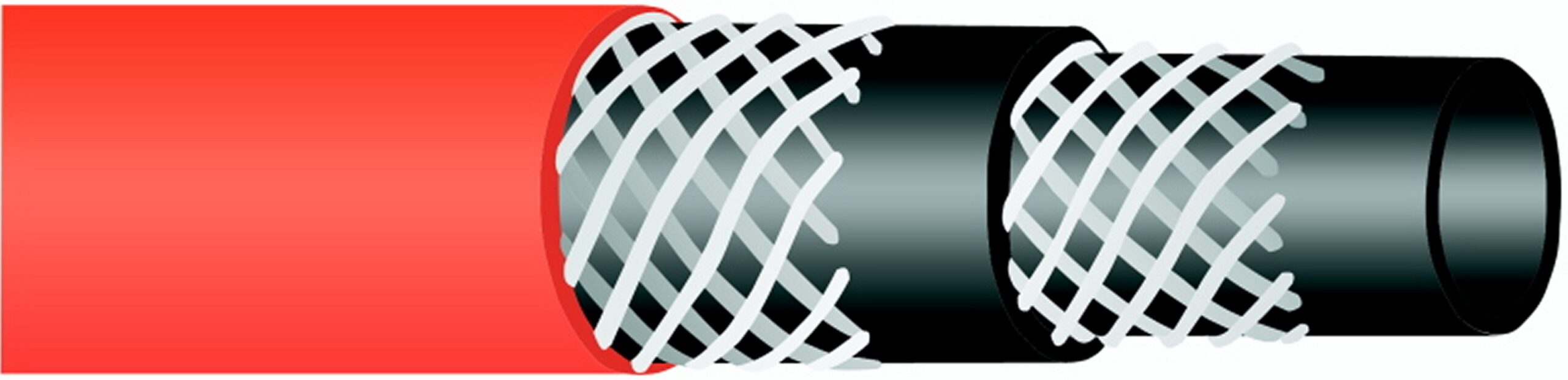

Picture for illustration purposes only.

Product Code Size Pack I.D. (mm) O.D. (mm) W.P. (bar) B.P. (bar) Bend (mm) Weight (kg/m)
M902-005-001 5 mm Per metre
M902-006-001 6 mm Per metre 6 13 20 60 36 0.20
M902-006-100 6 mm 100 m coil 6 13 20 60 36 0.20
M902-008-001 8 mm Per metre 8 15 20 60 48 0.24
M902-008-100 8 mm 100 m coil 8 15 20 60 48 0.24
M902-010-001 10 mm Per metre 10 17 20 60 60 0.30
M902-010-100 10 mm 100 m coil 10 17 20 60 60 0.30
M902-012-001 12.5 mm Per metre 12.5 20 20 60 75 0.33
M902-012-020 12.5 mm 20 m coil 12.5 20 20 60 75 0.33
M902-012-100 12.5 mm 100 m coil 12.5 20 20 60 75 0.33
M902-016-001 16 mm Per metre 16 26 20 60 96 0.59
M902-016-100 16 mm 100 m coil 16 26 20 60 96 0.59
M902-020-001 19 mm Per metre 19 29 20 60 114 0.67
M902-020-020 19 mm 20 m coil 19 29 20 60 114 0.67
M902-020-100 19 mm 100 m coil 19 29 20 60 114 0.67
M902-025-001 25 mm Per metre 25 35.5 20 60 150 0.87
M902-025-020 25 mm 20 m coil 25 35.5 20 60 150 0.87
M902-025-100 25 mm 100 m coil 25 35.5 20 60 150 0.87
M902-032-001 32 mm Per metre 32 44 20 60 192 1.33
M902-032-060 32 mm 60 m coil 32 44 20 60 192 1.33
M902-038-001 38 mm Per metre 38 54 20 60 228 2.04
M902-050-001 50 mm Per metre 50 66 20 60 400 2.64
M902-050-060 50 mm 60 m coil 50 66 20 60 400 2.64
