Air Seeder Hose

Applications

Seed and fertiliser conveyance for broadacre seeding. M830 hardwall suction (wire helix, smooth cover) for primary lines; M831 softwall delivery for secondary runs.

Technical description

Duty: Medium abrasion, seed & fertiliser
W.P.: 10 bar / burst 30 bar all sizes
Coils: 20 m
Temp: −20°C to +70°C

Direct M214 replacement up to 3" — same 10 bar suction duty to 76 mm; for 4" I.D. and up use M850. Clear PVC seeder lines (SHASB/SHASG/SHASR, Seedflo, TGT) also stocked. Data at 23°C / 50% RH.

QTY

Price

Price range: $1,059.25 through $2,528.30

Size

Pack

Clear

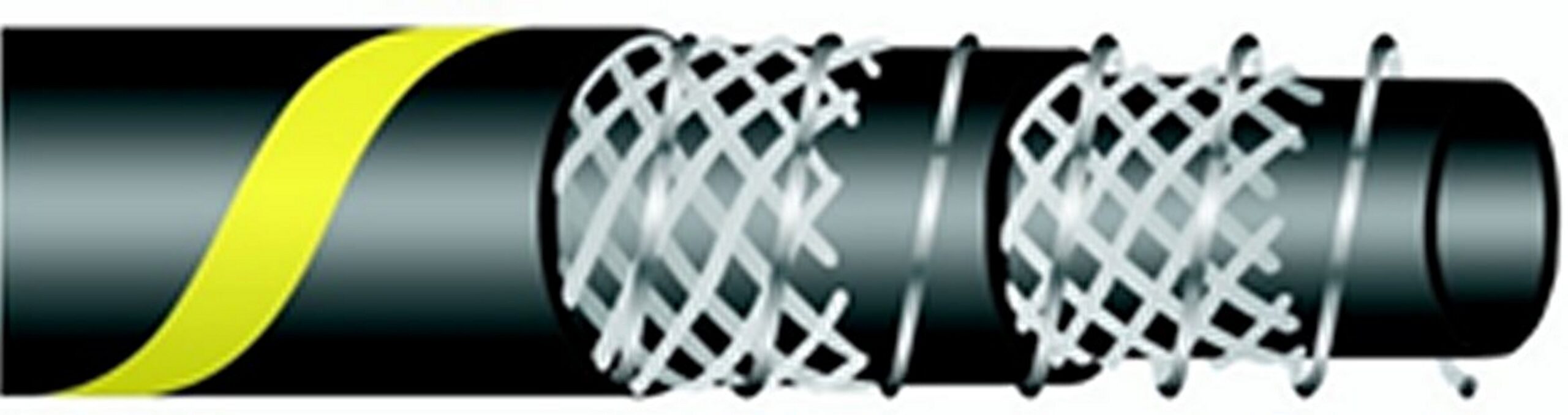

Picture for illustration purposes only.

Product Code	Size	Pack	I.D. (mm)	O.D. (mm)	Bend (mm)	Weight (kg/m)
M830-032-020	32 mm	20 m coil	32	42	128	1.04
M830-038-020	38 mm	20 m coil	38	48	152	1.19
M830-044-020	45 mm	20 m coil	45	56	180	1.64
M830-050-020	51 mm	20 m coil	51	62	306	1.87
M830-063-020	64 mm	20 m coil	64	76	384	2.69
M830-075-020	76 mm	20 m coil	76	89	456	3.34
