Dust Collector / Bulk Material Suction Hose

Applications

Known industry-wide as bulk material suction hose. Rated for water and slurry suction & delivery too — the corrugated outer wrap makes it far more flexible than smooth-cover hardwall alternatives.

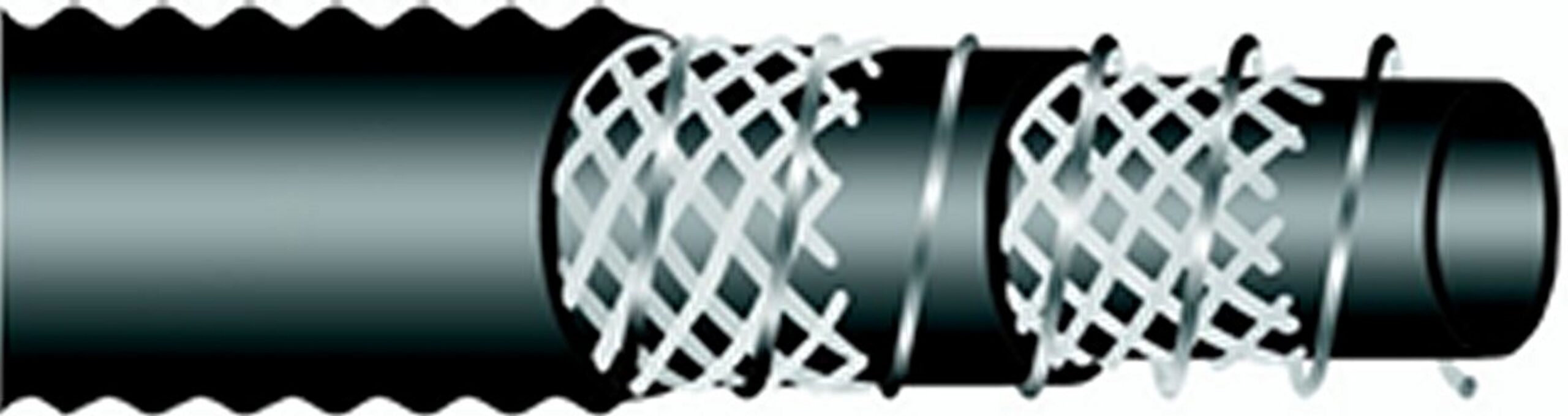

Technical description

Tube: Black smooth NR/SBR blend
Reinforcement: Cotton plies
Cover: EPDM/SBR, corrugated wrap finish
Temperature Range: 0°C to +65°C

M214 replacement rule: 4" I.D. and up → M850 · up to 3" → M830. Data at 23°C / 50% RH.

QTY

Price

Pricing Module Coming

Size

Pack

Clear

Dust Collector / Bulk Material Suction Hose

Picture for illustration purposes only.

Product Code	Size	Pack	I.D. (mm)	O.D. (mm)	W.P. (bar)	B.P. (bar)	Bend (mm)	Weight (kg/m)
M850-100	102 mm	Per metre	102	118	10	30	816	5.07
M850-100-005	102 mm	5 m coil	102	118	10	30	816	5.07
M850-100-010	102 mm	10 m coil	102	118	10	30	816	5.07
M850-100-020	102 mm	20 m coil	102	118	10	30	816	5.07
M850-125	127 mm	Per metre	127	147	10	30	1016	7.88
M850-125-005	127 mm	5 m coil	127	147	10	30	1016	7.88
M850-125-010	127 mm	10 m coil	127	147	10	30	1016	7.88
M850-125-020	127 mm	20 m coil	127	147	10	30	1016	7.88
M850-150	152 mm	150 m coil	152	171	10	30	1216	8.75
M850-150-005	152 mm	5 m coil	152	171	10	30	1216	8.75
M850-150-010	152 mm	10 m coil	152	171	10	30	1216	8.75
M850-150-015	152 mm	15 m coil	152	171	10	30	1216	8.75
M850-150-020	152 mm	20 m coil	152	171	10	30	1216	8.75
M850-200	203 mm	Per metre	203	223	10	30	1624	15.09
M850-200-012	203 mm	12 m coil	203	223	10	30	1624	15.09
