Materials Handling Hose

Heavy-duty slurry and wet-abrasive transfer — mining and quarries. Typically muff-coupled on site.

Selected sizes — 9 sizes 51–304 mm incl. 127, 254 mm. Data at 23°C / 50% RH.

QTY

Price

Pricing Module Coming

Size

Pack

Clear

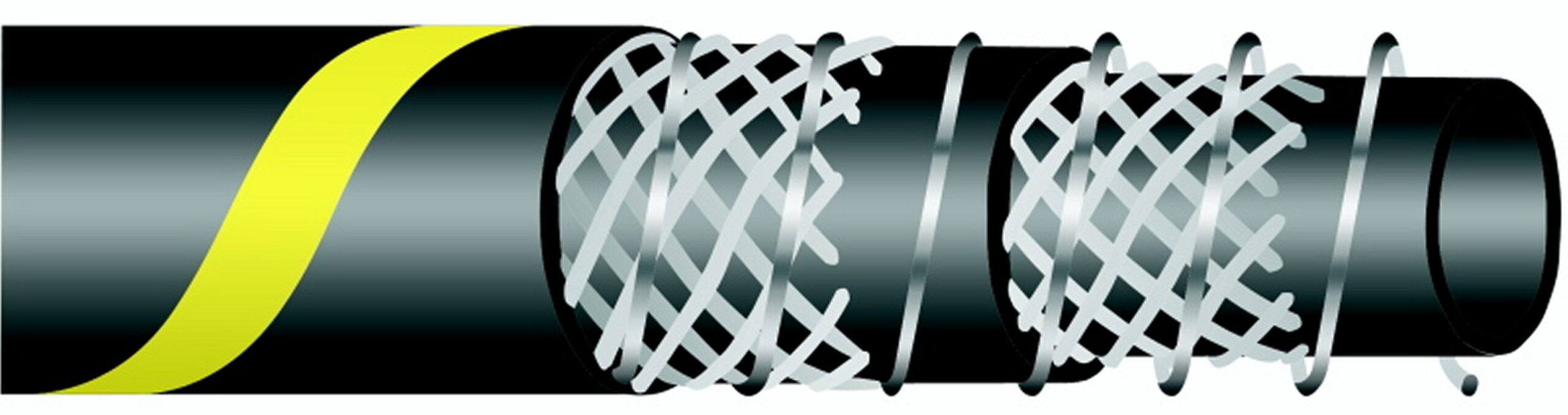

Picture for illustration purposes only.

Product Code	Size	Pack	I.D. (mm)	O.D. (mm)	W.P. (bar)	B.P. (bar)	Bend (mm)	Weight (kg/m)
M801-050	51 mm	Per metre	51	70	10	30	306	2.72
M801-050-020	51 mm	20 m coil	51	70	10	30	306	2.72
M801-063	64 mm	Per metre	64	81	10	30	384	3.54
M801-063-020	64 mm	20 m coil	64	81	10	30	384	3.54
M801-075	76 mm	Per metre	76	103	10	30	456	5.82
M801-075-020	76 mm	20 m coil	76	103	10	30	456	5.82
M801-100	102 mm	Per metre	102	128.5	10	30	612	7.56
M801-100-020	102 mm	20 m coil	102	128.5	10	30	612	7.56
M801-100-060	102 mm	60 m coil	102	128.5	10	30	612	7.56
M801-125	127 mm	Per metre
M801-125-020	127 mm	20 m coil
M801-150	152 mm	Per metre	152	182	10	30	912	12.49
M801-150-020	152 mm	20 m coil	152	182	10	30	912	12.49
M801-200	203 mm	Per metre	203	234	10	30	1218	17.23
M801-200-010	203 mm	10 m coil	203	234	10	30	1218	17.23
M801-200-012	203 mm	12 m coil	203	234	10	30	1218	17.23
M801-250	254 mm	Per metre
M801-250-010	254 mm	10 m coil
M801-250-012	254 mm	12 m coil
M801-300	304 mm	Per metre	304	344	10	30	1824	34.68
M801-300-010	304 mm	10 m coil	304	344	10	30	1824	34.68
M801-300-012	304 mm	12 m coil	304	344	10	30	1824	34.68
