Premium heavy-duty high-pressure air hose with a synthetic tube for oil mist (lubricated tools) and greater heat. Also suited to water suction and delivery.
63–102 mm sizes available on request. Data at 23°C / 50% RH. Specifications subject to manufacturer changes.
Pricing Module ComingYou'll get pricing for this item in the quote you submit — for now, just add it to your cart.

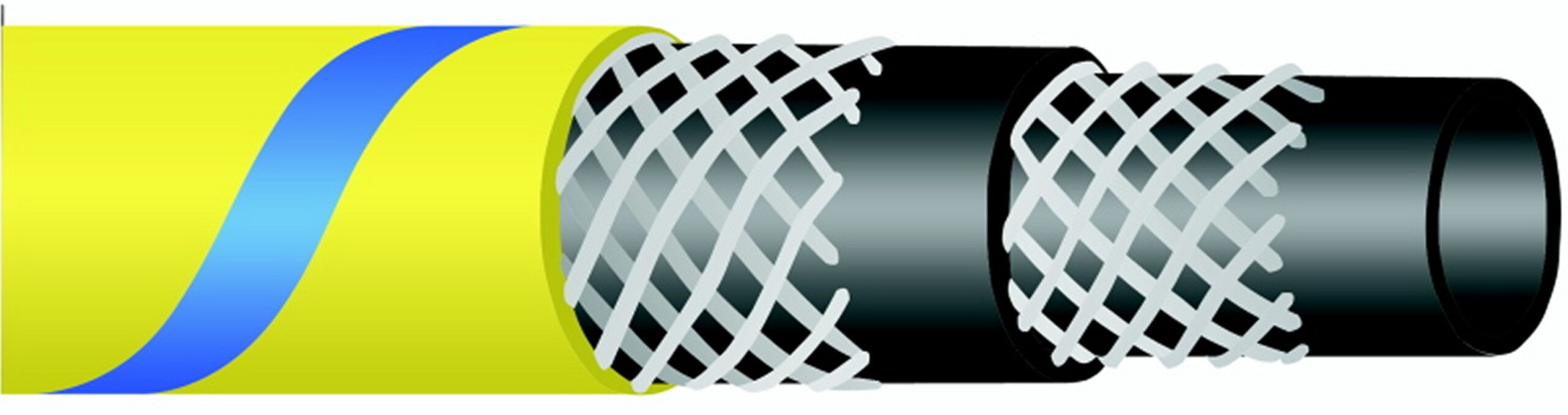

Picture for illustration purposes only.
| Product Code | Size | Pack | I.D. (mm) | O.D. (mm) | W.P. (bar) | B.P. (bar) | Bend (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|
| M109-012 | 12.5 mm | Per metre | 12.5 | 23 | 20 | 60 | 75 | 0.47 |
| M109-012-020 | 12.5 mm | 20 m coil | 12.5 | 23 | 20 | 60 | 75 | 0.47 |
| M109-012-060 | 12.5 mm | 60 m coil | 12.5 | 23 | 20 | 60 | 75 | 0.47 |
| M109-020-020 | 19 mm | 20 m coil | 19 | 29 | 20 | 60 | 114 | 0.62 |
| M109-025 | 25 mm | Per metre | 25 | 36 | 20 | 60 | 150 | 0.84 |
| M109-025-020 | 25 mm | 20 m coil | 25 | 36 | 20 | 60 | 150 | 0.84 |
| M109-025-060 | 25 mm | 60 m coil | 25 | 36 | 20 | 60 | 150 | 0.84 |
| M109-032 | 32 mm | Per metre | 32 | 44 | 20 | 60 | 192 | 1.19 |
| M109-032-020 | 32 mm | 20 m coil | 32 | 44 | 20 | 60 | 192 | 1.19 |
| M109-038 | 38 mm | Per metre | 38 | 50 | 20 | 60 | 228 | 1.36 |
| M109-038-020 | 38 mm | 20 m coil | 38 | 50 | 20 | 60 | 228 | 1.36 |
| M109-050 | 51 mm | Per metre | 51 | 67 | 20 | 60 | 408 | 2.45 |
| M109-050-020 | 51 mm | 20 m coil | 51 | 67 | 20 | 60 | 408 | 2.45 |
