Petrol & Oil Suction/Delivery Hose

Applications

Petroleum suction and discharge — tankers, depots and site refuelling. Also runs as a heavy-duty wet marine exhaust.

Technical description

Tube: Black NBR blend
Reinforcement: Dual steel wire helix + synthetic braid
Cover: EPDM/NBR, red stripe
Safety factor: 3:1
Temp: −20°C to +90°C

Selected sizes shown — 16 sizes 19–203 mm incl. 22, 45, 57, 90, 115 mm. Data at 23°C / 50% RH.

M404 crimped in-house — 90° stainless bends, ferrule-crimped and pressure-tested in Welshpool.

QTY

Price

Pricing Module Coming

Size

Pack

Clear

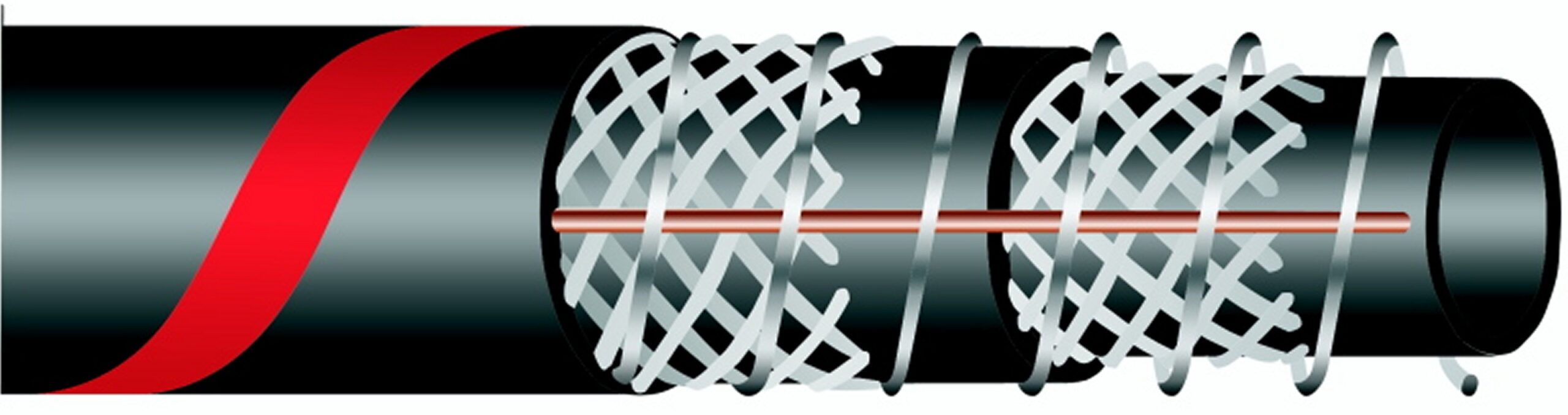

Picture for illustration purposes only.

Product Code	Size	Pack	I.D. (mm)	O.D. (mm)	W.P. (bar)	B.P. (bar)	Bend (mm)	Weight (kg/m)
M404-020	19 mm	Per metre	19	28	10	30	76	0.54
M404-020-020	19 mm	20 m coil	19	28	10	30	76	0.54
M404-020-060	19 mm	60 m coil	19	28	10	30	76	0.54
M404-022	22 mm	Per metre
M404-022-020	22 mm	20 m coil
M404-025	25 mm	Per metre	25	35	10	30	100	0.84
M404-025-005	25 mm	5 m coil	25	35	10	30	100	0.84
M404-025-020	25 mm	20 m coil	25	35	10	30	100	0.84
M404-025-060	25 mm	60 m coil	25	35	10	30	100	0.84
M404-032	32 mm	Per metre	32	42	10	30	128	0.90
M404-032-020	32 mm	20 m coil	32	42	10	30	128	0.90
M404-032-060	32 mm	60 m coil	32	42	10	30	128	0.90
M404-038	38 mm	Per metre	38	48	10	30	152	1.07
M404-038-005	38 mm	5 m coil	38	48	10	30	152	1.07
M404-038-020	38 mm	20 m coil	38	48	10	30	152	1.07
M404-038-060	38 mm	60 m coil	38	48	10	30	152	1.07
M404-044	45 mm	Per metre
M404-044-020	45 mm	20 m coil
M404-050	51 mm	Per metre	51	63	10	30	306	1.83
M404-050-005	51 mm	5 m coil	51	63	10	30	306	1.83
M404-050-020	51 mm	20 m coil	51	63	10	30	306	1.83
M404-057	57 mm	Per metre
M404-057-020	57 mm	20 m coil
M404-063	64 mm	Per metre	64	77	10	30	384	2.39
M404-063-020	64 mm	20 m coil	64	77	10	30	384	2.39
M404-075	76 mm	Per metre	76	89	10	30	456	2.92
M404-075-020	76 mm	20 m coil	76	89	10	30	456	2.92
M404-075-060	76 mm	60 m coil	76	89	10	30	456	2.92
M404-090	89 mm	Per metre
M404-090-020	89 mm	20 m coil
M404-100	102 mm	Per metre	102	118	10	30	612	4.82
M404-100-020	102 mm	20 m coil	102	118	10	30	612	4.82
M404-100-060	102 mm	60 m coil	102	118	10	30	612	4.82
M404-114	114 mm	Per metre
M404-114-020	114 mm	20 m coil
M404-125	127 mm	Per metre	127	145	10	30	762	6.86
M404-125-020	127 mm	20 m coil	127	145	10	30	762	6.86
M404-150	152 mm	Per metre	152	170	10	30	912	7.96
M404-150-020	152 mm	20 m coil	152	170	10	30	912	7.96
M404-200	203 mm	Per metre	203	223	10	30	1218	14.25
M404-200-020	203 mm	20 m coil	203	223	10	30	1218	14.25
