Water Suction Hose

Applications

Heavy-duty suction and delivery for all site water. Vacuum-rated dual wire helix keeps the bore open on suction lift.

Technical description

  • Tube: Black NR/SBR blend
  • Reinforcement: Dual steel wire helix + synthetic braid
  • Cover: EPDM/SBR, green stripe
  • Safety factor: 3:1
  • Temp: −20°C to +70°C

Selected sizes shown — 17 sizes 19–305 mm. Out of stock? Up to 3" → M830 · 4"+ → M850. Data at 23°C / 50% RH.

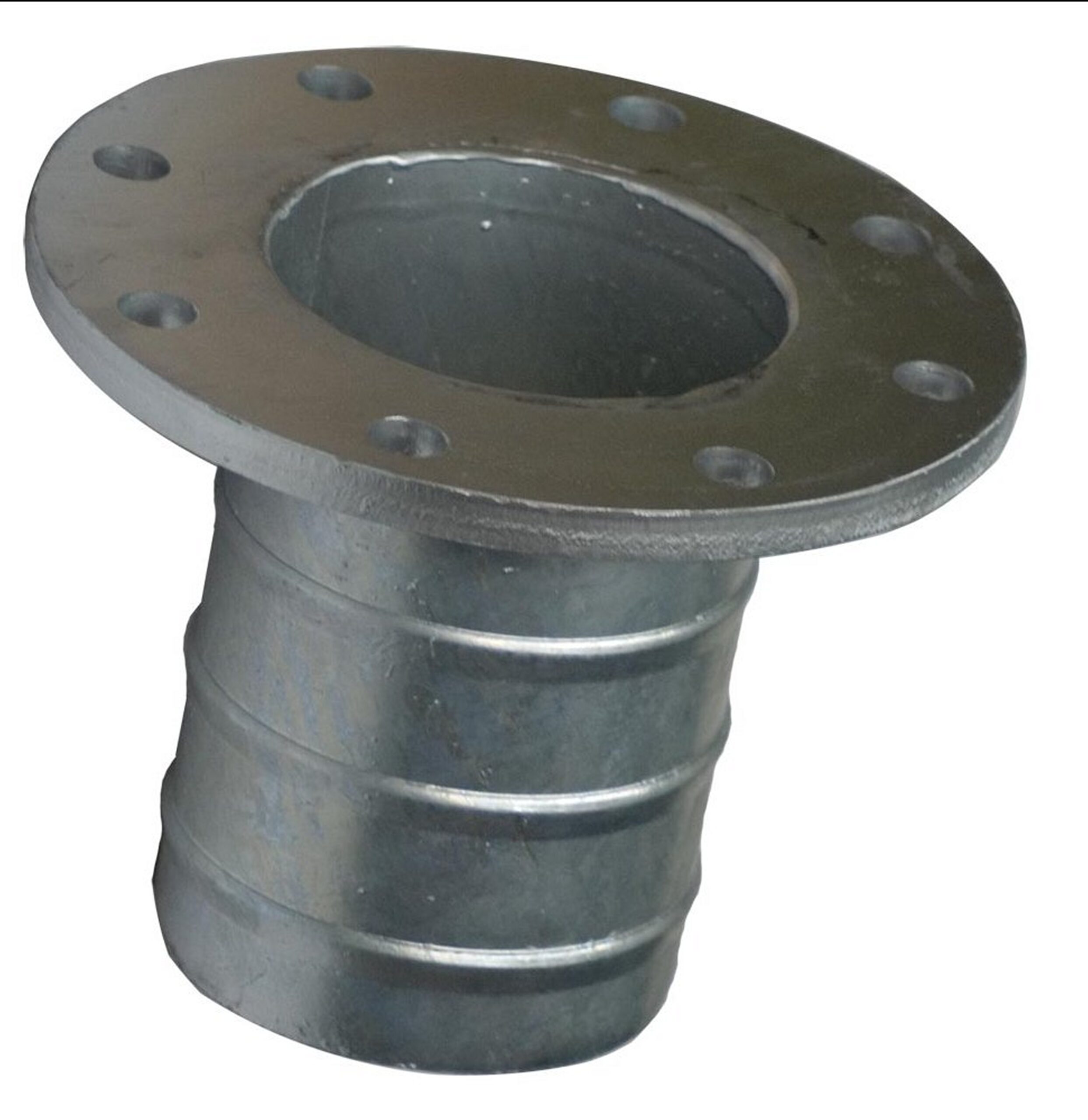

Cut to length with Bauer, camlock or flanged ends — pressure-tested and tagged in Welshpool, same day on stocked sizes.

QTY

Price

Pricing Module ComingYou'll get pricing for this item in the quote you submit — for now, just add it to your cart.

Awaiting product image

Picture for illustration purposes only.

Product Code Size Pack I.D. (mm) O.D. (mm) W.P. (bar) B.P. (bar) Bend (mm) Weight (kg/m)
M214-020 19 mm Per metre 19 29 10 30 76 0.70
M214-020-020 19 mm 20 m coil 19 29 10 30 76 0.70
M214-020-060 19 mm 60 m coil 19 29 10 30 76 0.70
M214-025 25 mm Per metre 25 35 10 30 100 0.86
M214-025-020 25 mm 20 m coil 25 35 10 30 100 0.86
M214-025-060 25 mm 60 m coil 25 35 10 30 100 0.86
M214-032 32 mm Per metre 32 42 10 30 128 1.12
M214-032-020 32 mm 20 m coil 32 42 10 30 128 1.12
M214-032-060 32 mm 60 m coil 32 42 10 30 128 1.12
M214-038 38 mm Per metre 38 48 10 30 152 1.28
M214-038-020 38 mm 20 m coil 38 48 10 30 152 1.28
M214-038-060 38 mm 60 m coil 38 48 10 30 152 1.28
M214-044 45 mm Per metre 45 56 10 30 180 1.62
M214-044-020 45 mm 20 m coil 45 56 10 30 180 1.62
M214-050 51 mm Per metre 51 62 10 30 306 1.95
M214-050-020 51 mm 20 m coil 51 62 10 30 306 1.95
M214-050-060 51 mm 60 m coil 51 62 10 30 306 1.95
M214-057 57 mm Per metre
M214-063 64 mm Per metre 64 76 10 30 384 2.59
M214-063-020 64 mm 20 m coil 64 76 10 30 384 2.59
M214-075 76 mm Per metre 76 89 10 30 456 3.40
M214-075-020 76 mm 20 m coil 76 89 10 30 456 3.40
M214-075-060 76 mm 60 m coil 76 89 10 30 456 3.40
M214-090 90 mm Per metre 90 104 10 30 540 4.61
M214-090-020 90 mm 20 m coil 90 104 10 30 540 4.61
M214-100 102 mm Per metre 102 118 10 30 612 5.59
M214-100-020 102 mm 20 m coil 102 118 10 30 612 5.59
M214-100-060 102 mm 60 m coil 102 118 10 30 612 5.59
M214-114 114 mm Per metre
M214-114-020 114 mm 20 m coil
M214-125 127 mm Per metre
M214-125-020 127 mm 20 m coil
M214-150 152 mm Per metre 152 171 10 30 912 10.09
M214-150-020 152 mm 20 m coil 152 171 10 30 912 10.09
M214-200 203 mm Per metre 203 224 10 30 1218 14.25
M214-200-012 203 mm 12 m coil 203 224 10 30 1218 14.25
M214-200-020 203 mm 20 m coil 203 224 10 30 1218 14.25
M214-250 254 mm Per metre
M214-300 305 mm Per metre 305 328 10 30 1830 25.31
M214-300-012 305 mm 12 m coil 305 328 10 30 1830 25.31
M214C-075 76 mm, Corrugated Per metre 76 89 10 30 456 3.40
