Plasticized PVC duct with anti-shock rigid PVC spiral. Perfectly smooth inside, outside corrugated. Very light and flexible. Resistant to atmospherical agents and to most chemicals. Used for the suction of air, fumes, gas, powders, sawing, dust. Aerating and conditioning plants, and in wood working plants.

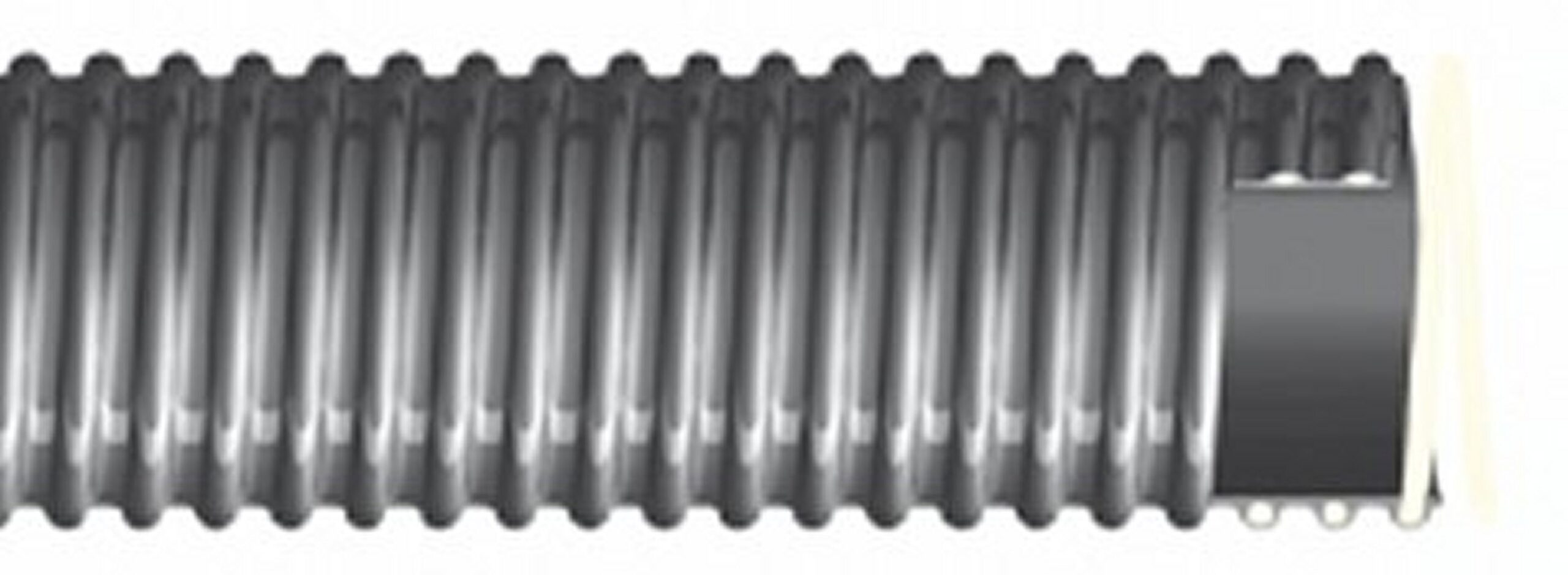

Picture for illustration purposes only.
| Product Code | Size | Diameter ID | Diameter OD | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|
| J12-020 | 3/4″ | 19 | 23.6 | 0.12 | 20 | 25 |
| J12-025 | 1″ | 25 | 30 | 0.16 | 20 | 32 |
| J12-032 | 1 1/4″ | 32 | 38 | 0.24 | 20 | 40 |
| J12-040 | 1 1/2″ | 38 | 44.4 | 0.31 | 20 | 45 |
| J12-050 | 2″ | 52 | 59.8 | 0.5 | 20 | 60 |
| J12-075 | 3″ | 76 | 84.6 | 0.78 | 20 | 100 |
| J12-100 | 4″ | 102 | 113.2 | 1.28 | 20 | 155 |
| J12-125 | 5″ | 127 | 138.6 | 1.6 | 20 | 190 |
| J12-150 | 6″ | 152 | 162.6 | 2 | 20 | 200 |
| J12-200 | 8″ | 203 | 213.6 | 2.7 | 20 | 240 |
