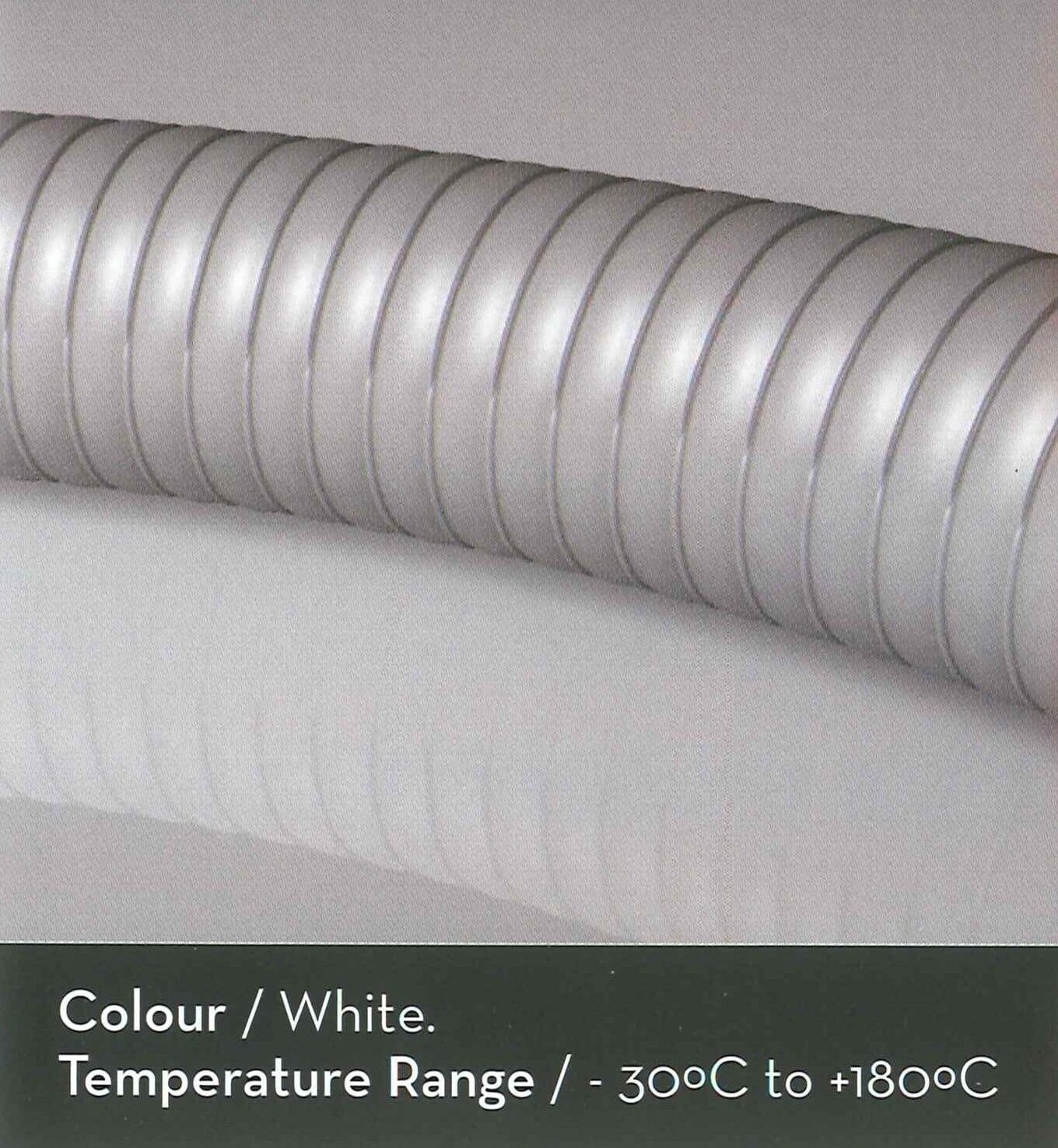

Manufactured from polyester film and fabric designed for high temperature operation, this composite hose is ideal for the transfer of hot bitumen via gravity, suction or pressure up to 180C. Conforms to AS2475-1001 Type 2, Grade 2. Galvanised steel internal wire, Stainless steel external wire. Note: Not recommended for use close to direct external radiant heat as the cover is not flame retardant.
| Product Code | Size | Diameter ID | Diameter OD | Working Pressure | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|---|
| CH966-080 | 3″ | 76 | 90 | 72.5 | 3.5 | 20 | 280 |
| CH966-020 | 3/4″ | 19 | 28 | 101.5 | 0.8 | 20 | 125 |
| CH966-025 | 1″ | 25 | 35 | 101.5 | 0.9 | 20 | 125 |
| CH966-063 | 2 1/2″ | 63 | 78 | 72.5 | 2.8 | 20 | 250 |
| CH966-032 | 1 1/4″ | 32 | 43 | 101.5 | 1 | 20 | 130 |
| CH966-050 | 2″ | 51 | 68 | 87 | 2 | 20 | 200 |
| CH966-040 | 1 1/2″ | 39 | 50 | 101.5 | 1.5 | 20 | 150 |
