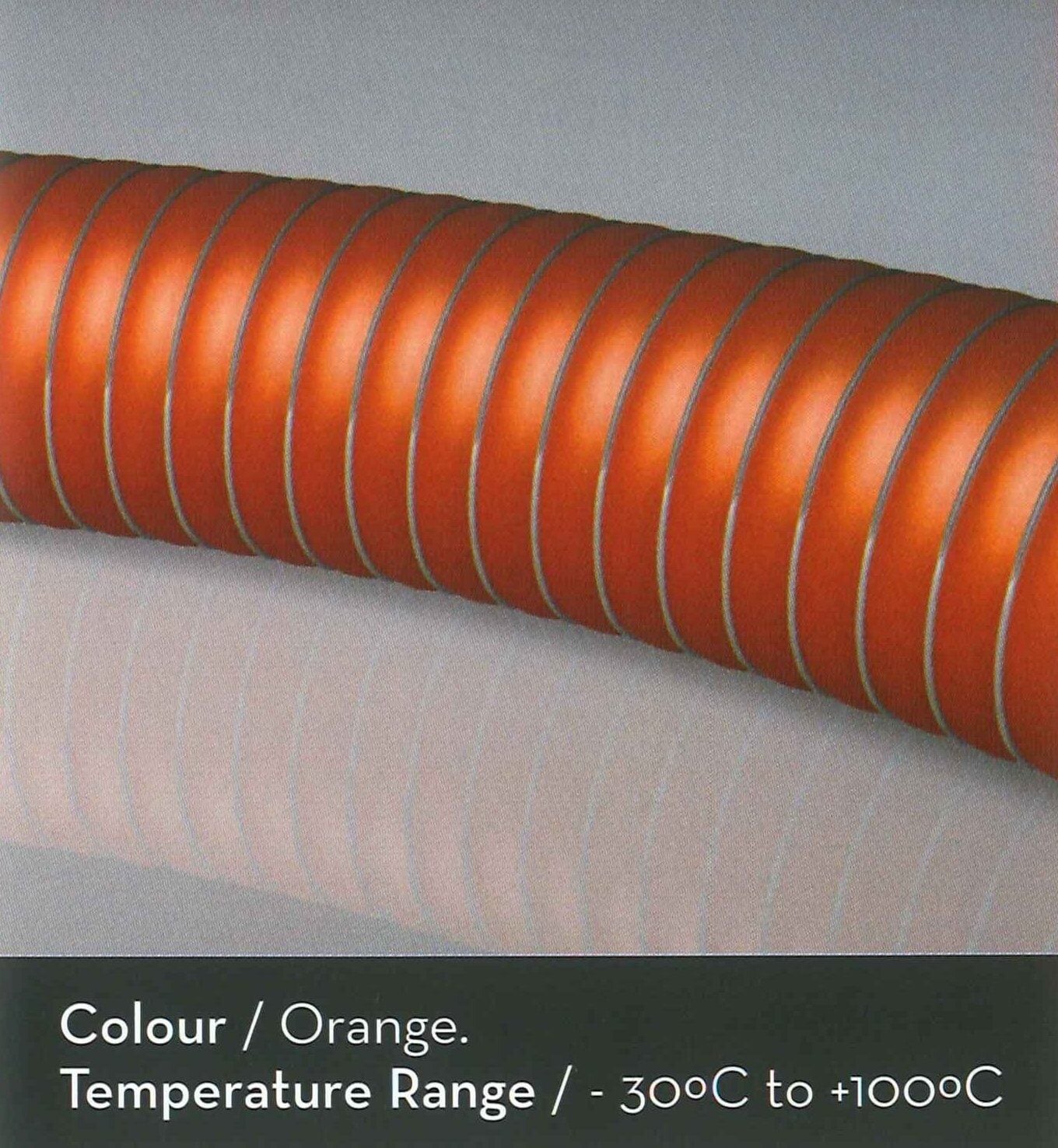

Chemiflow AS2594-1983 composite hose range is suitable for the suction and delivery of a wide range of chemicals. Constructed of polypropylene films and fabrics, the hoses are resistant to most acids, alkalis and solvents. Internal and external helix wires bind the hose together and deliver its pressure handling characteristics and a tough PVC coated fabric cover forms the outer cover. Internal wire: Stainless steel, External wire: Galvanised steel
| Product Code | Size | Diameter ID | Diameter OD | Working Pressure | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|---|
| CH969-063 | 2 1/2″ | 63 | 78 | 145 | 2.7 | 20 | 200 |
| CH969-050 | 2″ | 51 | 65 | 174 | 1.8 | 20 | 170 |
| CH969-080 | 3″ | 76 | 92 | 145 | 3.3 | 20 | 270 |
| CH969-040 | 1 1/2″ | 39 | 50 | 203 | 1.5 | 20 | 140 |
| CH969-025 | 1″ | 25 | 38 | 203 | 0.9 | 20 | 100 |
| CH969-150 | 6″ | 152 | 180 | 145 | 12.4 | to-order | 700 |
| CH969-100 | 4″ | 102 | 120 | 145 | 6.3 | 20 | 340 |
| CH969-032 | 1 1/4″ | 32 | 45 | 203 | 1.3 | 20 | 125 |
