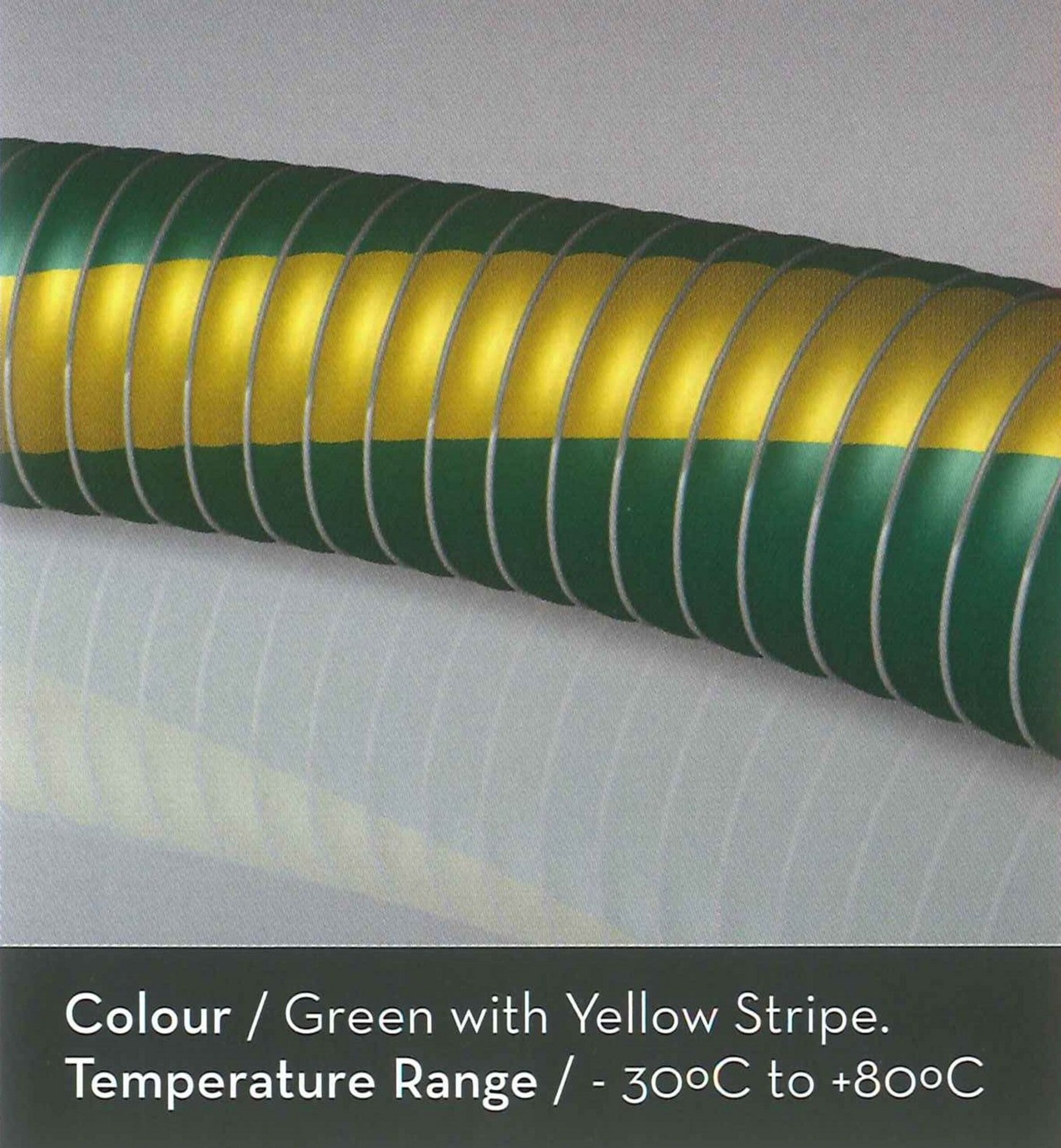

Light weight, flexible composite hose designed for suction and delivery of petroleum based products. Suitable for road and rail tankers. Internal Galvanised steel wire/External Galvanised steel wire. Conforms to AS2683-2000 Type 1 Grade 3.
| Product Code | Size | Diameter ID | Diameter OD | Working Pressure | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|---|
| CH1000-080 | 3″ | 76 | 90 | 101.5 | 2.8 | 20 | 125 |
| CH1000-150 | 6″ | 152 | 170 | 101.5 | 7.8 | to-order | 400 |
| CH1000-025 | 1″ | 25 | 32 | 101.5 | 0.8 | 20 | 60 |
| CH1000-050 | 2″ | 51 | 63 | 101.5 | 1.6 | 20 | 90 |
| CH1000-038 | 1 1/2″ | 39 | 48 | 101.5 | 1.3 | 20 | 75 |
| CH1000-032 | 1 1/4″ | 32 | 38 | 101.5 | 1 | 20 | 75 |
| CH1000-063 | 2 1/2″ | 63 | 75 | 101.5 | 2.4 | 20 | 100 |
| CH1000-100 | 4″ | 102 | 112 | 101.5 | 4.1 | 20 | 200 |
