Light material handling and air seeder mandrel built rubber hose with a steel wire helix for reinforcement. Excellent abrasive resistance and corrugated cover for flexibility.

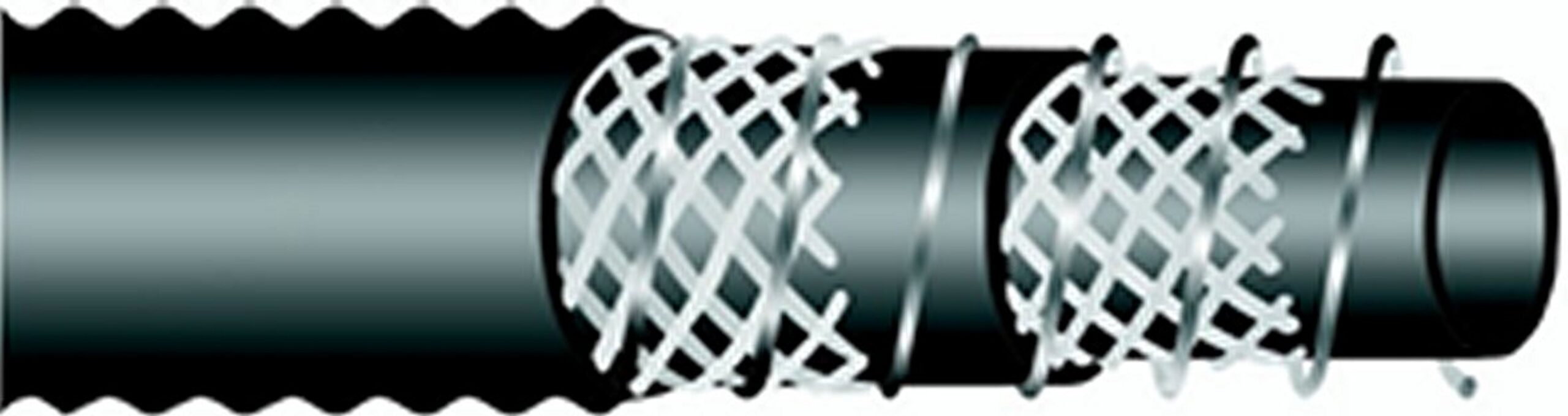

Picture for illustration purposes only.
| Product Code | Size | Diameter ID | Diameter OD | Working Pressure | Burst Pressure | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|---|---|
| D850-100 | 4″ | 102 | 118 | 150 | 450 | 5.58 | 20 | 816 |
| D850-125 | 5″ | 127 | 147 | 150 | 450 | 7.88 | 20 | 1016 |
| D850-150 | 6″ | 152 | 171 | 150 | 450 | 9.22 | 20 | 1216 |
| D850-200 | 8″ | 203 | 223 | 150 | 450 | 13.38 | 12 | 1624 |
