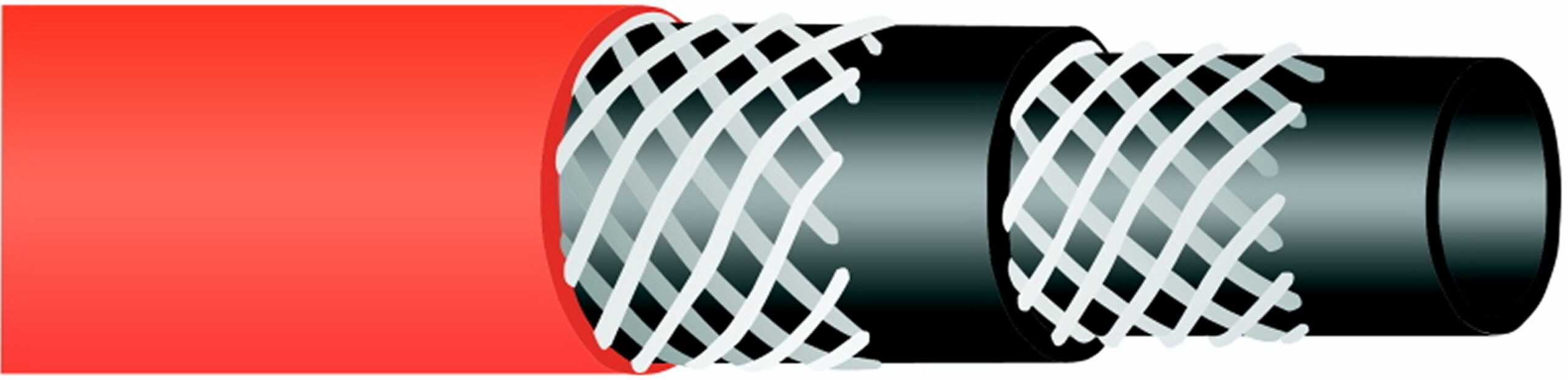

Red Multipurpose Hose

General industrial application with frequent contact with oil or grease, this non-conductive extruded rubber hose is suitable for the transfer of water, air, oil and petroleum based products up to 30% aromatic content. The versatility of this hose makes it an excellent choice in a range of applications.

QTY

Product Specifications

Product Code	Size	Diameter ID	Diameter OD	Working Pressure	Burst Pressure	Weight	Roll Length
D902-06	1/4″	6	13	300	900	0.15	100
D902-10	3/8″	10	17	300	900	0.23	100
D902-16	5/8″	15.8	25	300	900	0.5	100
D902-50	2″	52	66	300	900	1.25	60
D902-25	1″	25.4	35.5	300	900	0.65	100
D902-32	1 1/4″	32	44	300	900	0.72	60
D902-38	1 1/2″	38	54	300	900	1.04	60
D902-19	3/4″	19	29	300	900	0.56	100
D902-12	1/2″	12.7	20	300	900	0.28	100
D902-08	5/16″	8	15	300	900	0.19	100
