A tough, flexible suction & discharge hose designed for the transfer of water, sludge, slurries, chemicals, grains, sand and gravel. Also suitable for general agricultural use and widely used in mining and construction.

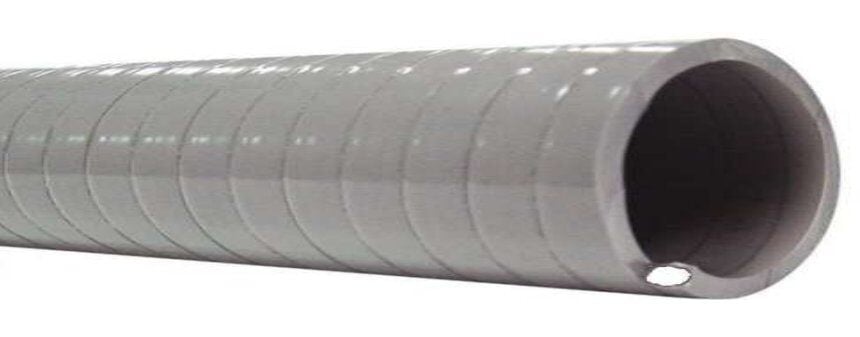

Picture for illustration purposes only.
| Product Code | Size | Diameter ID | Diameter OD | Working Pressure | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|---|
| SHHD025 | 1″ | 25 | 31.9 | 130.5 | 0.39 | 20 | 30 | 120 |
| SHHD032 | 1 1/4″ | 32 | 39.4 | 116 | 0.53 | 20 | 150 |
| SHHD038 | 1 1/2″ | 38 | 46.1 | 101.5 | 0.69 | 20 | 30 | 200 |
| SHHD044 | 1 3/4″ | 44 | 52.6 | 101.5 | 0.89 | 20 | 250 |
| SHHD050 | 2″ | 51 | 60.2 | 87 | 1.07 | 20 | 30 | 300 |
| SHHD063 | 2 1/2″ | 63 | 74.4 | 87 | 1.51 | 20 | 400 |
| SHHD075 | 3″ | 76 | 89.6 | 72.5 | 2.25 | 20 | 450 |
| SHHD100 | 4″ | 102 | 116 | 58 | 3.17 | 20 | 600 |
| SHHD125 | 5″ | 127 | 142 | 58 | 4.33 | 20 | – |
| SHHD150 | 6″ | 150 | 170 | 58 | 6.73 | 20 | – |
