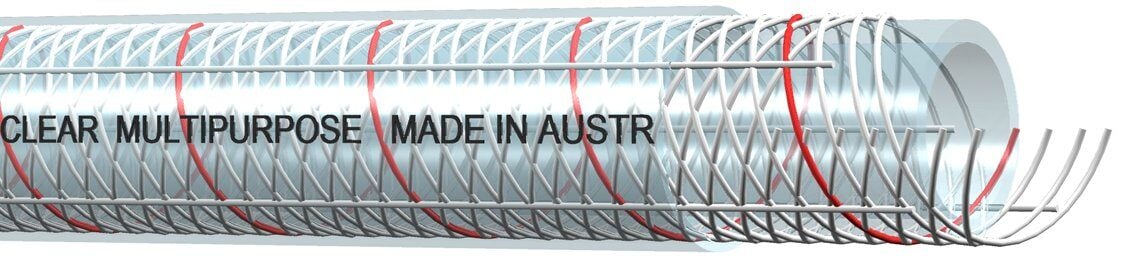

Clear multipurpose hose for the transfer of air, water, food and petroleum products. Conforms to AS 2070
Picture for illustration purposes only.
| Product Code | Size | Diameter ID | Diameter OD | Working Pressure | Burst Pressure | Weight | Roll Length |
|---|---|---|---|---|---|---|---|
| PHTPR06 | 1/4″ | 6 | 11.6 | 230 | 930 | 0.09 | 20 | 100 | 300 |
| PHTPR08 | 5/16″ | 8 | 14 | 230 | 930 | 0.12 | 20 | 100 | 300 |
| PHTPR10 | 3/8″ | 10 | 16.9 | 230 | 930 | 0.15 | 20 | 100 | 300 |
| PHTPR12 | 1/2″ | 12.5 | 18.5 | 230 | 930 | 0.21 | 20 | 100 | 200 |
| PHTPR16 | 5/8″ | 16 | 22 | 230 | 930 | 0.27 | 20 | 100 |
| PHTPR19 | 3/4″ | 19 | 26 | 230 | 930 | 0.35 | 20 | 100 |
| PHTPR25 | 1″ | 25 | 33 | 230 | 930 | 0.52 | 20 | 100 |
| PHTPR32 | 1 1/4″ | 32 | 40 | 175 | 700 | 0.72 | 20 | 60 |
| PHTPR38 | 1 1/2″ | 38 | 50 | 145 | 580 | 1.46 | 20 | 60 |
| PHTPR50 | 2″ | 50 | 61.5 | 130 | 520 | 1.89 | 20 | 40 |
