Blueflex PVC Air/Water Hose

Applications

For air compressors and pneumatic tools. Excellent UV resistance, flexible at low temperatures.

Technical description

  • Standard: AS 2554 Class B
  • Cover: Blue PVC, UV resistant
  • Temperature Range: −5°C to +60°C
  • Ready-made: PHYB10NIT / PHYB12NIT — Nitto-type couplings fitted both ends

Ratings at 23°C — derate in hot sun; step up to rubber (M107/M124) for mine-spec duties.

QTY

Price

Pricing Module ComingYou'll get pricing for this item in the quote you submit — for now, just add it to your cart.

Blueflex PVC Air/Water Hose

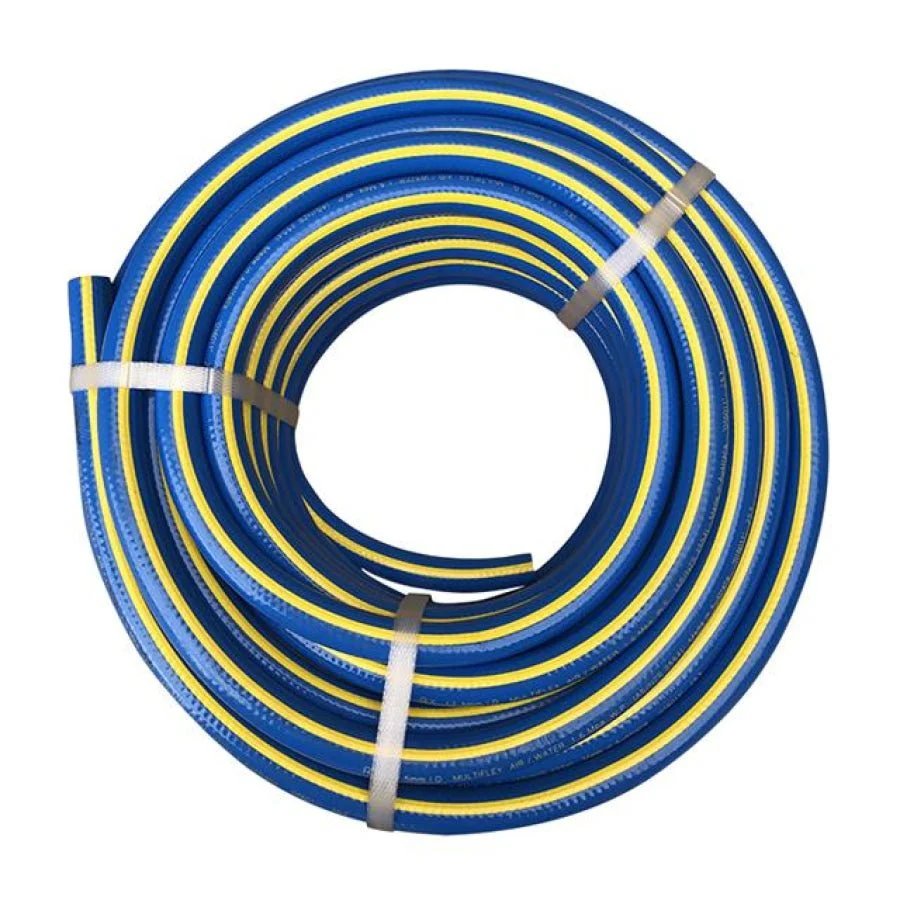

Picture for illustration purposes only.

Product Code Size Pack I.D. (mm) O.D. (mm) W.P. (bar) B.P. (bar)
PHYB06/020 6 mm 20 m coil 6 12 16 63
PHYB08/020 8 mm 20 m coil 8 14 16 63
PHYB08/100 8 mm 100 m coil 8 14 16 63
PHYB10 10 mm Per metre 10 16.4 16 63
PHYB10/010NIT 10 mm 10 m assembly (Nitto ends) 10 16.4 16 63
PHYB10/015NIT 10 mm 15 m assembly (Nitto ends) 10 16.4 16 63
PHYB10/020 10 mm 20 m coil 10 16.4 16 63
PHYB10/020NIT 10 mm 20 m assembly (Nitto ends) 10 16.4 16 63
PHYB10/030NIT 10 mm 30 m assembly (Nitto ends) 10 16.4 16 63
PHYB10/100 10 mm 100 m coil 10 16.4 16 63
PHYB10/300 10 mm 300 m coil 10 16.4 16 63
PHYB12 12.5 mm Per metre 12.5 18.9 16 63
PHYB12/020 12.5 mm 20 m coil 12.5 18.9 16 63
PHYB12/020NIT 12.5 mm 20 m assembly (Nitto ends) 12.5 18.9 16 63
PHYB12/030NIT 12.5 mm 30 m assembly (Nitto ends) 12.5 18.9 16 63
PHYB12/100 12.5 mm 100 m coil 12.5 18.9 16 63
PHYB12/200 12.5 mm 200 m coil 12.5 18.9 16 63
PHYB19 20 mm Per metre 20 27.9 16 63
PHYB19/020 20 mm 20 m coil 20 27.9 16 63
PHYB19/100 20 mm 100 m coil 20 27.9 16 63
PHYB25 25 mm Per metre 25 34 16 63
PHYB25/020 25 mm 20 m coil 25 34 16 63
PHYB25/100 25 mm 100 m coil 25 34 16 63
