Super Air/Water Delivery Hose

Applications

Heavy-duty, high-pressure air delivery for the mining industry. Also suited to water suction and delivery — one hose for the whole compressor circuit.

Technical description

Tube: Black NR/SBR blend
Reinforcement: High tensile synthetic braid
Cover: EPDM/SBR, blue stripe
Safety factor: 3:1 burst : working
Temperature Range: −20°C to +70°C

Hose only or fully assembled. Data at 23°C / 50% RH. Specifications subject to manufacturer changes.

QTY

Price

Pricing Module Coming

Size

Pack

Clear

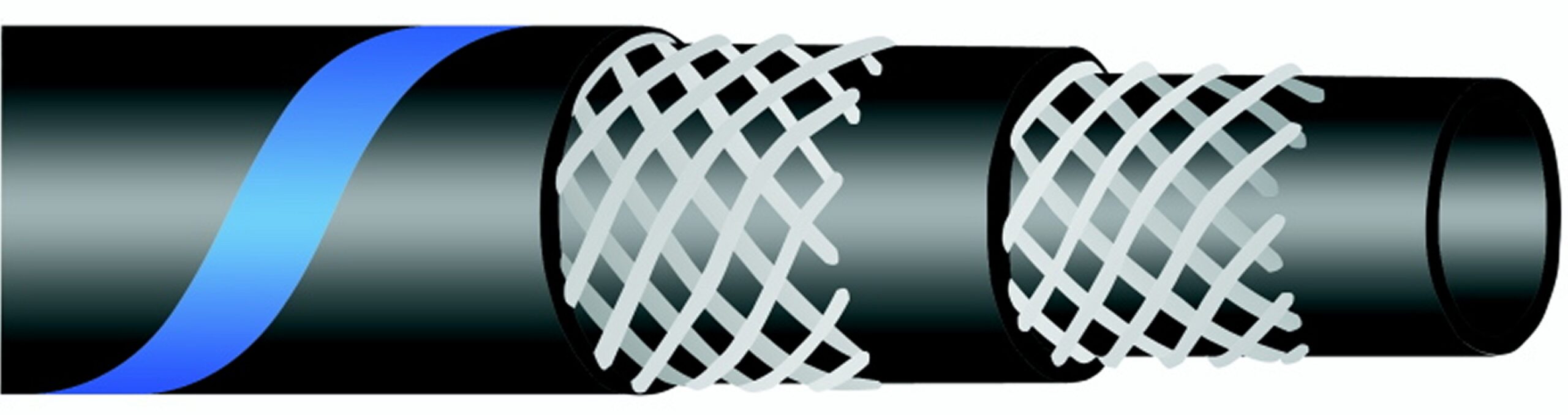

Picture for illustration purposes only.

Product Code	Size	Pack	I.D. (mm)	O.D. (mm)	W.P. (bar)	B.P. (bar)	Bend (mm)	Weight (kg/m)
M107-012	12.5 mm	Per metre	12.5	23	20	60	75	0.47
M107-012-020	12.5 mm	20 m coil	12.5	23	20	60	75	0.47
M107-012-060	12.5 mm	60 m coil	12.5	23	20	60	75	0.47
M107-020	19 mm	Per metre	19	29	20	60	114	0.62
M107-020-020	19 mm	20 m coil	19	29	20	60	114	0.62
M107-020-060	19 mm	60 m coil	19	29	20	60	114	0.62
M107-025	25 mm	Per metre	25	36	20	60	150	0.84
M107-025-020	25 mm	20 m coil	25	36	20	60	150	0.84
M107-025-060	25 mm	60 m coil	25	36	20	60	150	0.84
M107-032	32 mm	Per metre	32	44	20	60	192	1.19
M107-032-020	32 mm	20 m coil	32	44	20	60	192	1.19
M107-032-060	32 mm	60 m coil	32	44	20	60	192	1.19
M107-038	38 mm	Per metre	38	50	20	60	228	1.36
M107-038-020	38 mm	20 m coil	38	50	20	60	228	1.36
M107-038-060	38 mm	60 m coil	38	50	20	60	228	1.36
M107-050	51 mm	Per metre	51	67	20	60	408	2.45
M107-050-020	51 mm	20 m coil	51	67	20	60	408	2.45
M107-050-060	51 mm	60 m coil	51	67	20	60	408	2.45
M107-063	64 mm	Per metre	64	80	20	60	512	3.04
M107-063-020	64 mm	20 m coil	64	80	20	60	512	3.04
M107-063-060	64 mm	60 m coil	64	80	20	60	512	3.04
M107-075	76 mm	Per metre	76	93	20	60	608	3.64
M107-075-020	76 mm	20 m coil	76	93	20	60	608	3.64
M107-075-060	76 mm	60 m coil	76	93	20	60	608	3.64
M107-100	102 mm	Per metre	102	121	20	60	816	5.54
M107-100-020	102 mm	20 m coil	102	121	20	60	816	5.54
M107-100-060	102 mm	60 m coil	102	121	20	60	816	5.54
