The W4 All Stainless Steel T-Bolt Super Clamp is a premium heavy duty hose clamp engineered for demanding industrial applications where standard worm drive clamps are insufficient. The T-bolt design delivers uniform, high clamping force around the full circumference of the hose — critical for high-pressure suction and delivery lines.
Also available in mild steel: see our W1 Mild Steel T-Bolt Super Clamp.
Price range: $1.12 through $30.59

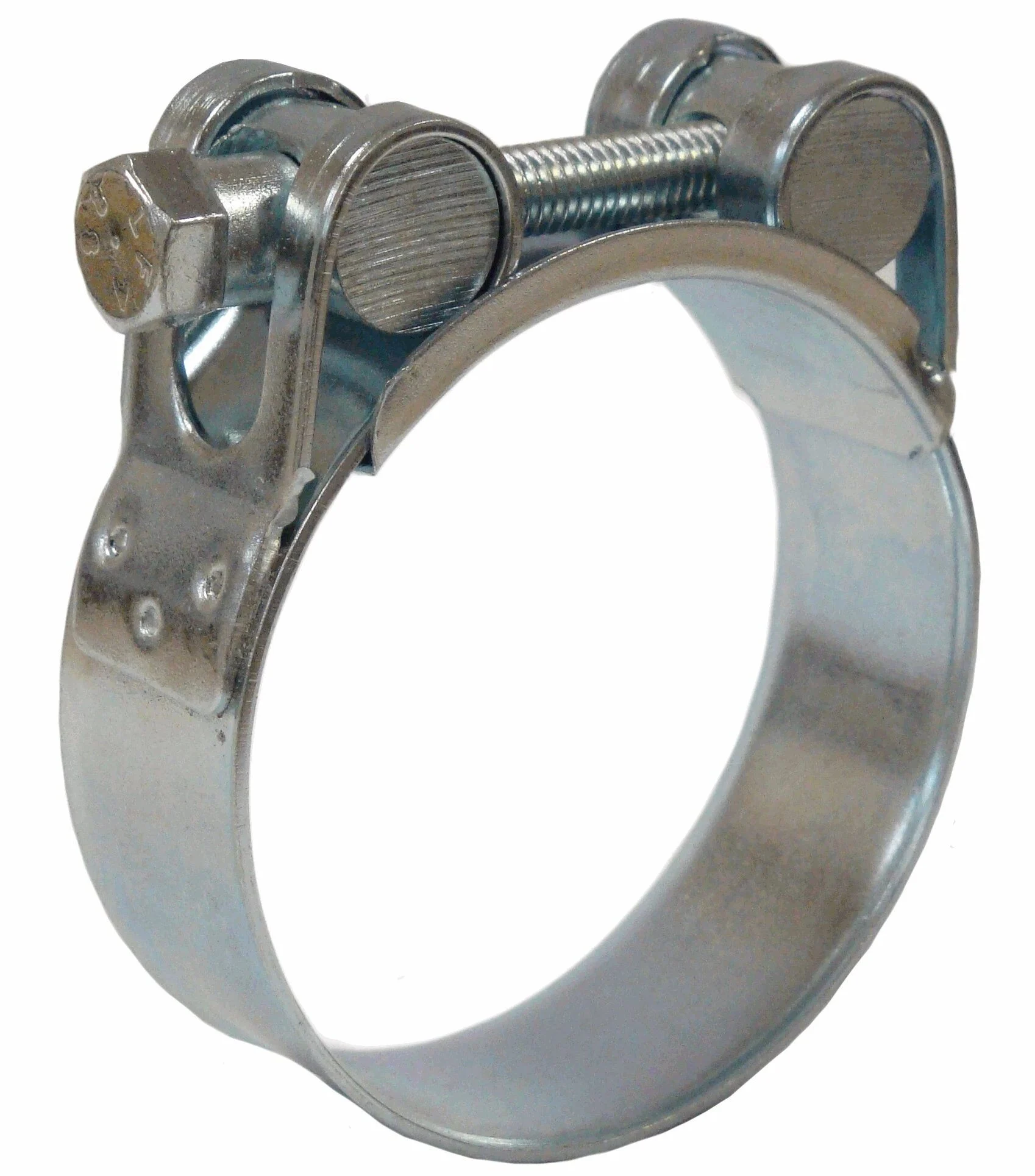

Picture for illustration purposes only.
All stainless steel T-bolt super clamp for heavy duty hose connections. Designed for suction and pressure hoses with plastic or steel inserts. High clamping force, suitable for high shore hardness hose materials. Superior corrosion resistance.
| Product Code | Size | Pack Quantity |
|---|---|---|
| GBSW4-112 | 104-112mm | 10 |
| GBSW4-027 | 25-27mm | 10 |
| GBSW4-073 | 68-73mm | 10 |
| GBSW4-174 | 162-174mm | 5 |
| GBSW4-265 | 252-265mm | 2 |
| GBSW4-043 | 40-43mm | 10 |
| GBSW4-047 | 43-47mm | 10 |
| GBSW4-252 | 239-252mm | 5 |
| GBSW4-187 | 174-187mm | 5 |
| GBSW4-068 | 63-68mm | 10 |
| GBSW4-029 | 27-29mm | 10 |
| GBSW4-330 | 317-330mm | 2 |
| GBSW4-121 | 112-121mm | 10 |
| GBSW4-104 | 97-104mm | 10 |
| GBSW4-025 | 23-25mm | 10 |
| GBSW4-079 | 73-79mm | 10 |
| GBSW4-162 | 150-162mm | 5 |
| GBSW4-278 | 265-278mm | 2 |
| GBSW4-040 | 37-40mm | 10 |
| GBSW4-051 | 47-51mm | 10 |
| GBSW4-239 | 226-239mm | 5 |
| GBSW4-200 | 187-200mm | 5 |
| GBSW4-063 | 59-63mm | 10 |
| GBSW4-031 | 29-31mm | 10 |
| GBSW4-317 | 304-317mm | 2 |
| GBSW4-130 | 121-130mm | 10 |
| GBSW4-097 | 91-97mm | 10 |
| GBSW4-019 | 17-19mm | 10 |
| GBSW4-023 | 21-23mm | 10 |
| GBSW4-085 | 79-85mm | 10 |
| GBSW4-150 | 140-150mm | 5 |
| GBSW4-291 | 278-291mm | 2 |
| GBSW4-037 | 34-37mm | 10 |
| GBSW4-055 | 51-55mm | 10 |
| GBSW4-226 | 213-226mm | 5 |
| GBSW4-213 | 200-213mm | 5 |
| GBSW4-059 | 55-59mm | 10 |
| GBSW4-034 | 31-34mm | 10 |
| GBSW4-304 | 291-304mm | 2 |
| GBSW4-140 | 130-140mm | 5 |
| GBSW4-091 | 85-91mm | 10 |
| GBSW4-021 | 19-21mm | 10 |
