Designed for the conveyance of wines, beers and other liquid food products. Capable of handling up to 28% alcohol. Heavy wall design makes it ideally suited to the canning and food packaging industries. Excellent abrasion and chemical resistance with good flexibilty and moderate U.V. resistance. Conforms to AS2070

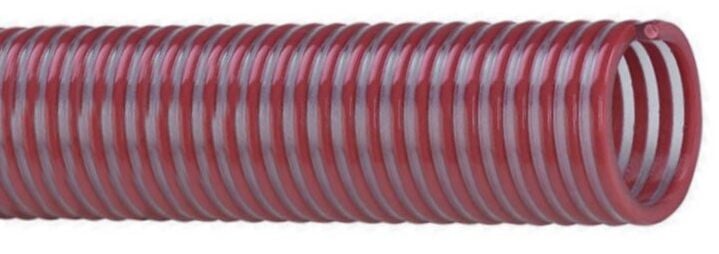

Picture for illustration purposes only.
| Product Code | Size | Diameter ID | Diameter OD | Working Pressure | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|---|
| SHSFB025 | 1″ | 25 | 33 | 100 | 0.6 | 20 | 120 |
| SHSFB032 | 1 1/4″ | 32 | 40 | 100 | 0.71 | 20 | 150 |
| SHSFB038 | 1 1/2″ | 38 | 47 | 100 | 0.82 | 20 | 200 |
| SHSFB050 | 2″ | 51 | 60 | 100 | 1.2 | 20 | 300 |
| SHSFB063 | 2 1/2″ | 64 | 74 | 95 | 1.73 | 20 | 400 |
| SHSFB075 | 3″ | 76 | 86 | 75 | 2.29 | 20 | 450 |
| SHSFB100 | 4″ | 102 | 113 | 70 | 3.33 | 20 | 600 |
