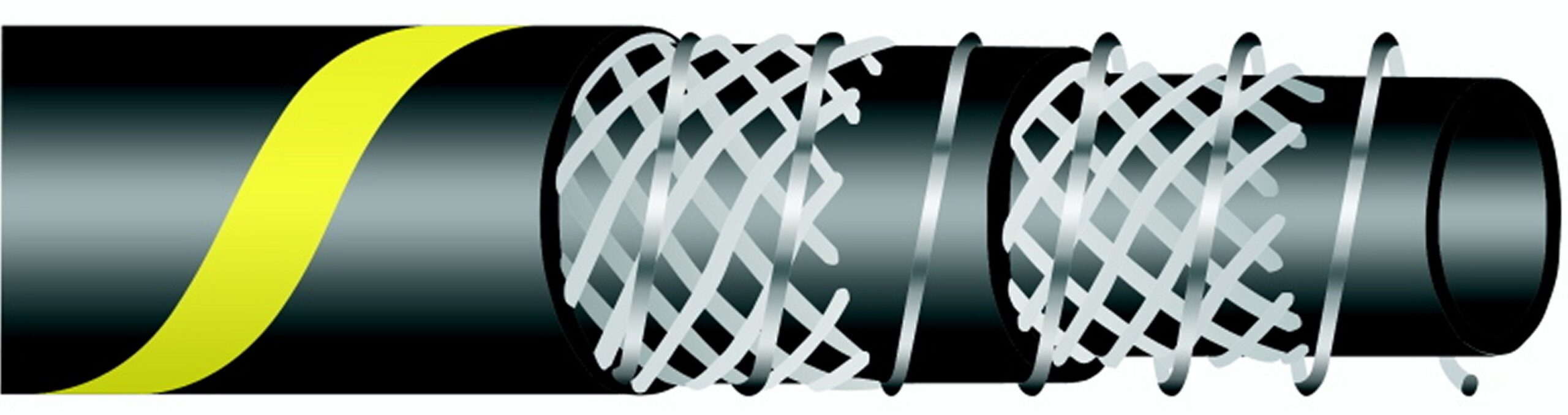

Heavy duty hose designed specifically for the transfer of slurry and wet abrasive materials in mining and industrial applications. Suitable for use with aluminium and cast iron muff couplings.
| Product Code | Size | Diameter ID | Diameter OD | Working Pressure | Burst Pressure | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|---|---|
| D801-100 | 4″ | 102 | 128 | 100 | 300 | 8.67 | 20 | 60 | 1224 |
| D801-125 | 5″ | 127 | 157 | 100 | 300 | 11.91 | 20 | 30 | 1524 |
| D801-075 | 3″ | 76 | 103 | 100 | 300 | 5.44 | 20 | 60 | 915 |
| D801-150 | 6″ | 152 | 182 | 100 | 300 | 14.22 | 20 | 30 | 1824 |
| D801-063 | 2 1/2″ | 64 | 81 | 100 | 300 | 3.3 | 20 | 60 | 756 |
| D801-200 | 8″ | 204 | 234 | 100 | 300 | 19.22 | 12 | 2436 |
| D801-050 | 2″ | 51 | 71 | 100 | 300 | 2.92 | 20 | 60 | 612 |
| D801-250 | 10″ | 254 | 287 | 75 | 225 | 25.33 | 12 | 3048 |
| D801-300 | 12″ | 305 | 344 | 75 | 225 | 36.78 | 12 | 3648 |
