A flexible duct made in flame resistant PVC coated polyester fabric and reinforced by steel helix welded between the two layers. Axial compressibility: 8:1. Used in civil and naval conditioning plants, ventilation systems, suction of fumes, vapours, powders, gas. Flame retardant V(TM)-0 according to UL 94 and M2 grade according to NFP 92 503.

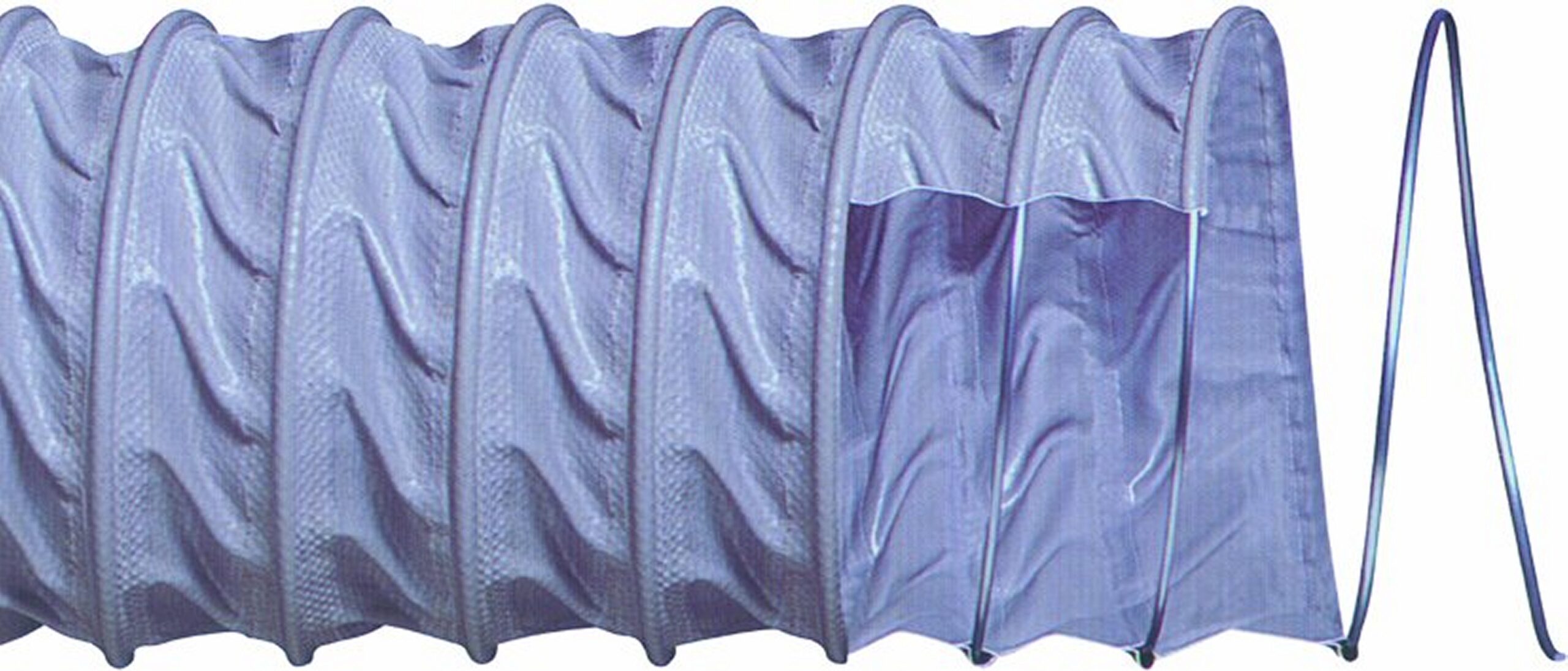

Picture for illustration purposes only.
| Product Code | Size | Diameter ID | Diameter OD | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|
| J13-040 | 1 1/2″ | 38 | 46 | 0.1 | 10 | 20 |
| J13-050 | 2″ | 51 | 58.2 | 0.12 | 10 | 26 |
| J13-060 | 2.38 | 63 | 67.2 | 0.14 | 10 | 30 |
| J13-075 | 3″ | 76 | 83.6 | 0.18 | 10 | 38 |
| J13-090 | 3 1/2″ | 90 | 99 | 0.22 | 10 | 45 |
| J13-100 | 4″ | 102 | 111.4 | 0.28 | 10 | 51 |
| J13-114 | 4 1/2″ | 114 | 124.2 | 0.34 | 10 | 58 |
| J13-125 | 5″ | 127 | 137.2 | 0.38 | 10 | 64 |
| J13-140 | 5 1/2″ | 140 | 150.4 | 0.4 | 10 | 70 |
| J13-150 | 6″ | 152 | 162.6 | 0.41 | 10 | 76 |
| J13-160 | 6 1/2″ | 160 | 170.6 | 0.45 | 10 | 80 |
| J13-180 | 7″ | 180 | 192 | 0.5 | 10 | 90 |
| J13-200 | 8″ | 203 | 216.6 | 0.57 | 10 | 102 |
| J13-230 | 9″ | 228 | 242 | 0.64 | 10 | 114 |
| J13-250 | 10″ | 254 | 268 | 0.8 | 10 | 127 |
| J13-300 | 12″ | 305 | 319.4 | 0.96 | 10 | 153 |
| J13-350 | 14″ | 356 | 370.4 | 1.11 | 10 | 138 |
| J13-400 | 16″ | 406 | 420.4 | 1.27 | 10 | 165 |
