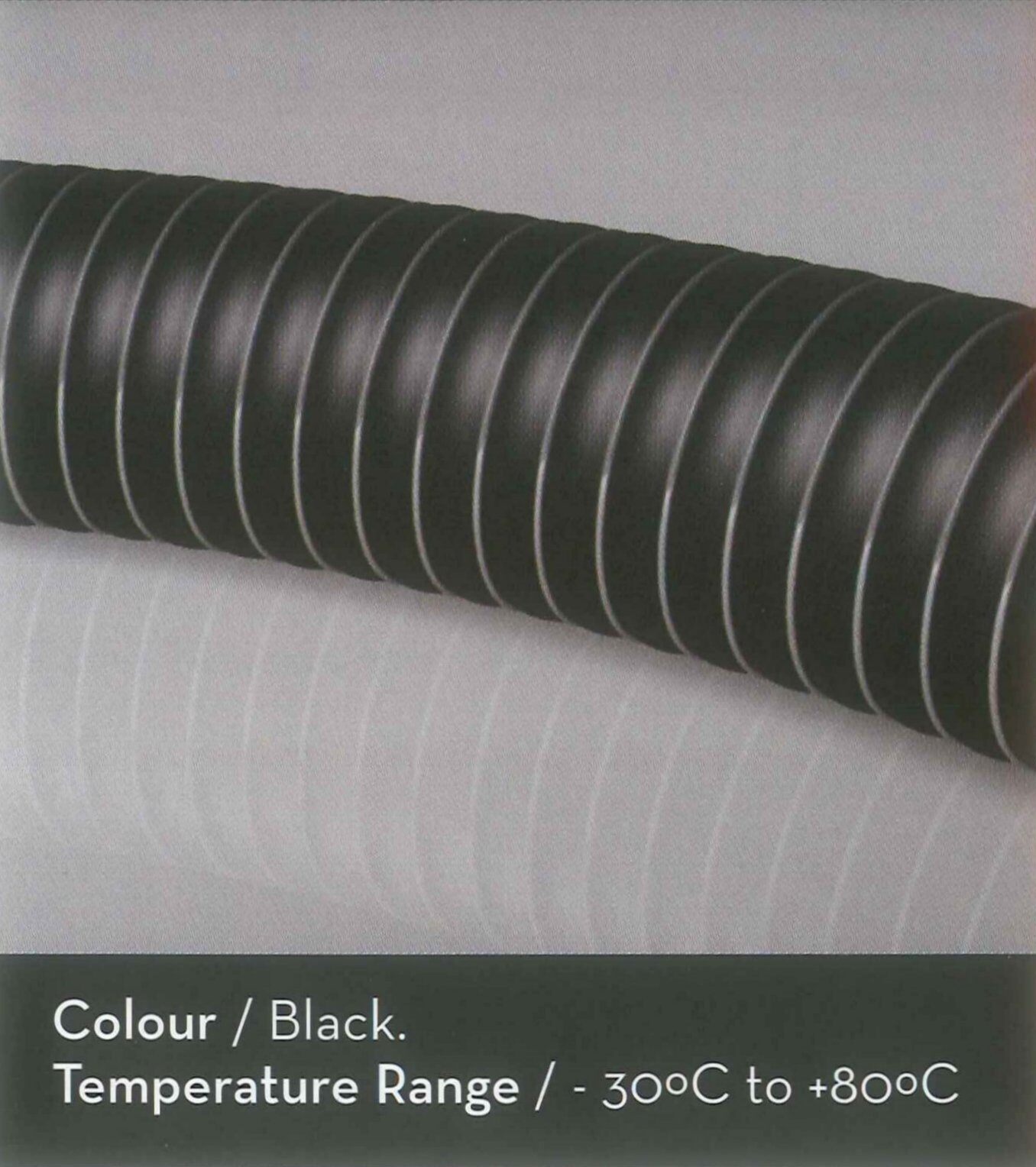

Used for ship to shore and general purpose heavy duty applications conveying petroleum products. Suitable for heavy duty discharge for road and rail tankers, docks, ship to shore. Conforms to AS2683-2000 Type 1 Grade 3. Galvanised internal and external wire.
| Product Code | Size | Diameter ID | Diameter OD | Working Pressure | Weight | Roll Length | Bend Radius |
|---|---|---|---|---|---|---|---|
| CH901-100 | 4″ | 102 | 120 | 145 | 6.5 | 20 | 340 |
| CH901-063 | 2 1/2″ | 63 | 76 | 145 | 3 | 20 | 200 |
| CH901-032 | 1 1/4″ | 32 | 42 | 203 | 1.3 | 20 | 125 |
| CH901-038 | 1 1/2″ | 39 | 50 | 203 | 1.5 | 20 | 140 |
| CH901-050 | 2″ | 51 | 65 | 203 | 1.9 | 20 | 170 |
| CH901-025 | 1″ | 25 | 35 | 203 | 0.9 | 20 | 100 |
| CH901-150 | 6″ | 152 | 180 | 145 | 12.4 | to-order | 700 |
| CH901-080 | 3″ | 76 | 90 | 145 | 3.4 | 20 | 270 |
